General Purpose ESD Workbench with Lamstat Worktop

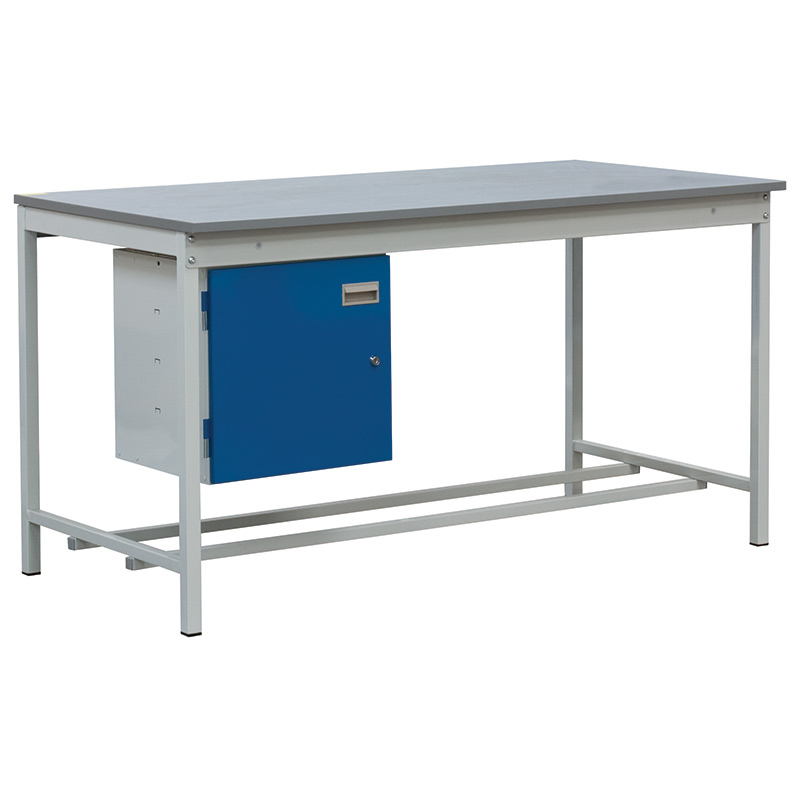

Square tube ESD workbench with Lamstat worktop and under-bench cabinet

Made to order

supplied
in kit form

made in
the UK

year
guarantee

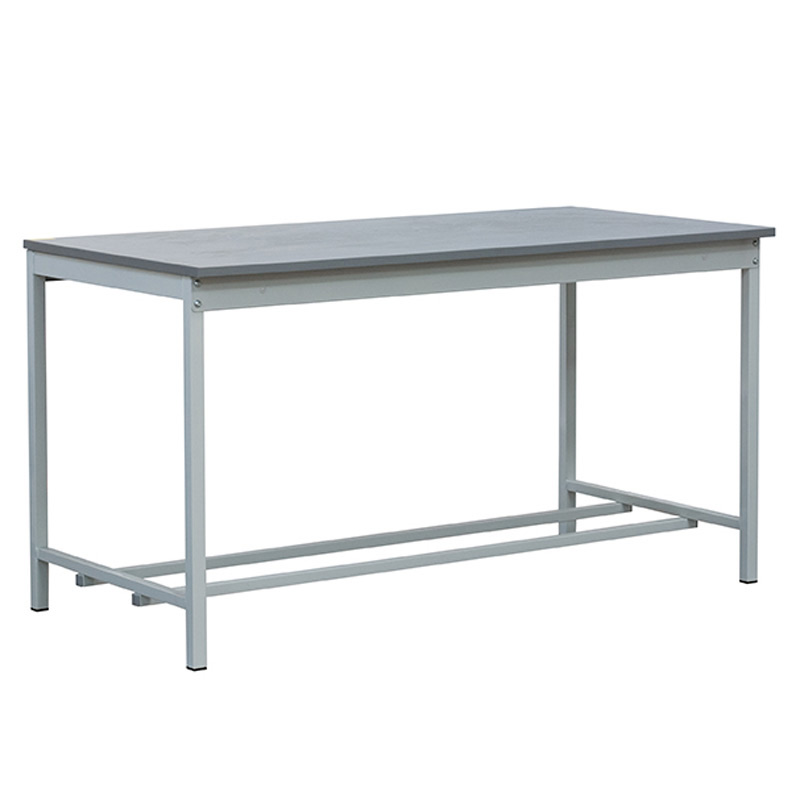

General Purpose ESD Workbench with Lamstat Worktop

Designed & manufactured in component form for total flexibility
Welded tubular steel leg frames for strength and channel supports for rigidity
Grey ESD lamstat worktop (19mm thick)
Lamstat is a 1 mm thick hard high pressure dissipative laminate surface bonded to a 18mm thick particle board with balancing laminate on the reverse
Complete range of accessories available
Complete with adjustable feet
250kg UDL capacity
Durable powder coated light grey frame finish
Static control workbenches are fitted with 2 x 4mm wrist strap sockets
Made in the UK
Workbench with Neostat Top also available
Dark Grey (RAL7024), Blue (RAL5017) & Black (RAL9005) frames available at extra cost - please call for more details

ESD Workbenches

Code Bench Size
H x W x D (mm) Price
ex. VAT

BQ841260LLXX

840 x 1200 x 600

1 - 2

£432.95

£419.96

BQ841275LLXX

840 x 1200 x 750

1 - 2

£480.20

£465.79

BQ841290LLXX

840 x 1200 x 900

1 - 2

£557.80

£541.07

BQ841575LLXX

840 x 1500 x 750

1 - 2

£738.80

£716.64

BQ841590LLXX

840 x 1500 x 900

1 - 2

£768.10

£745.06

BQ841875LLXX

840 x 1800 x 750

1 - 2

£780.05

£756.65

BQ841890LLXX

840 x 1800 x 900

1 - 2

£813.50

£789.10

Framework constructed from welded tubular steel leg frames and channel supports, Lamstat static dissipative worktop with 20mm thick grey plastic laminate surface, leak resistance 10⁶ - 10⁸ ohms.

ESD

This General Purpose ESD Workbench with Lamstat Worktop is both strong and robust thanks to its leg frame and channel supports fabricated from welded tubular steel. Adding to the unit's firm stability are the adjustable feet that ensure the workbench remains steady when set on an uneven floor. The bench is also powder coated to ensure that it remains durable.

Comprising a grey plastic laminate surface that is 20mm thick, the Lamstat Worktop is of special interest, as it has a leak resistance of 106-108 ohms. This makes it ideal for use in the electronic and electrical industries, although this worktop is suitable for all sectors.

These General Purpose ESD Workbenches with Lamstat Worktops have added features to ensure precise work can be carried out. For static control operations the bench comes with two 4mm wrist straps. Other accessories that help advance the versatility of the workbenches include cupboards and drawers and upper and lower shelving for storage purposes. The work surface area can also be extended with a compatible extension bench.

Data points and RCB circuit breakers can also be incorporated into these ESD workbenches. Other accessories include a post mount electrical service duct, a surface mount electrical service duct, electrical insulating strip, fluorescent lighting strip and a light tool support rail.

Compatible ESD workbench accessories

Delivery & Returns

Delivery Charges

Free UK mainland delivery on orders over £50 ex.VAT.

Orders under £50 ex.VAT - £5.95 delivery charge.

Postcode exceptions: HS, KW, ZE, IV, AB, DD, PH, PA, GY, JE, IM, BT, Isle of Anglesey, Isle of Wight and Eire.

Standard deliveries are Monday to Friday 8.30am to 5.30pm to the GROUND FLOOR or KERBSIDE only (unless previously agreed in writing).
We are unable to confirm exact delivery times, but we can usually confirm a day if you let us know in advance.

Saturday deliveries, timed AM or PM or above ground floor deliveries are available at extra cost.
Oversized products requiring a crane or hiab offload may incur an additional charge.
Contact us for more information.

Estimated Delivery Times

Lead times are displayed in working days, which excludes weekends & bank holidays.
During these unprecedented times, occasionally we are experiencing unexpected delays. If you have not received your item within the lead time shown please contact us and we will look into it as a matter of urgency.
Stock levels change daily, if you have a specific delivery requirement please contact us and we will do our best to help.

At the time of delivery

An authorised person must be present to sign for delivery.
Failed attempts may result in a return delivery charge.
A request to leave goods without signature is entirely at your own risk.

Please check your delivered goods carefully.
ESE Direct cannot accept claims for shortage or damage after goods have been signed for.
The only exception is proof of a carrier note that is marked as damaged.
We must also be notified in writing within 24 hours of the delivery.
Please do not sign for any goods as 'unexamined' or 'unchecked' as carriers will not accept liability for any subsequent damage.

Problems with Deliveries

Nobody is perfect, unfortunately damages & mistakes happen.
In this case, please email customer services on [email protected] as soon you receive your item (including a photo would really help speed things up).
Or call Customer Services on 0800 161 3437 and we will deal with you as a priority.

Packaging

As part of our commitment to the environment, much of the packaging we use can be recycled.

Customer Questions

Ask a question

Anonymous User - 17 May 2018

Q. are they flat packed ?

A. Yes, some assembly is required.

Anonymous User - 27 Mar 2015

Q. Please can you tell me what a lamstat worktop is?

A. That is an ESD ( Electro static Dissipative) Laminate material
