Aluminium Dock Plates 680kg to 2090kg Capacity
Buy Now- Designed for unloading goods from vehicles
- Ideal for use with pallet trucks, sack trucks and roll cages
- Manufactured in high tensile aluminium with anti-slip tread pattern surfaces
- Lighter plates are suitable for manual positioning
- For health & safety plates above 25kg require 2 persons, plates above 50kg require lifting facilities
- The maximum recommended height differential is our recommended maximum use, however these dock plates can be used beyond this figure as long as it is within the maximum possible difference
- Easy to install requiring no disruption to existing dock
- Optional side curbs (SCC-2) with castors to prevent wheeled traffic slipping off the ramp and enable easy movement of the dock plate when not in use
- Optional forklift (FTH-1) lifting handles for safe moving of heavier models
- Optional locking legs (FSL-1) provide extra support when gap between the dock and the vehicle is greater than 150mm
- These dock plates can be specially manufactured to any required measurements. Please call us should you require a specially made dock plate
- For heavier duty uses (forklift trucks etc) see our Aluminium Hinged Bridge Plates 500kg to 4000kg cap
Request a call back
Aluminium Dock Plates 680kg to 2090kg Capacity
| Code | Dimensions W x L (mm) |
Max. Possible Height Difference (mm) |
Max. Recommended Height Difference (mm) |
Capacity (kg) |
Weight (kg) |
Price ex. VAT |
||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4836 | 1220 x 915 | 127 | 90 | 1360 | 32 |
|
|
|||||||
| 3648 | 915 x 1220 | 178 | 125 | 770 | 32 |
|
|
|||||||
| 4842 | 1220 x 1070 | 152 | 110 | 1180 | 37 |
|
|
|||||||
| 4248 | 1070 x 1220 | 178 | 125 | 910 | 37 |
|
|
|||||||
| H3648 | 915 x 1220 | 178 | 125 | 1360 | 44 |
|
|
|||||||
| H4842 | 1220 x 1070 | 152 | 110 | 2090 | 50 |
|
|
|||||||
| H4248 | 1070 x 1220 | 178 | 125 | 1590 | 50 |
|
|
|||||||
| 4860 | 1220 x 1525 | 228 | 160 | 810 | 52 |
|
|
|||||||
| 6048 | 1525 x 1220 | 178 | 125 | 1270 | 51 |
|
|
|||||||
| 4872 | 1220 x 1830 | 280 | 200 | 680 | 62 |
|
|
|||||||
| 6060 | 1525 x 1525 | 228 | 160 | 1020 | 64 |
|
|
|||||||
| H4860 | 1220 x 1525 | 228 | 160 | 1450 | 70 |
|
|
|||||||
| H4872 | 1220 x 1830 | 280 | 200 | 1180 | 84 |
|
|
|||||||
| FSL-1 | ADDITIONAL LOCKING LEGS (2 REQUIRED IF GAP OVER 150mm) FOR DOCK PLATES TO PREVENT MOVEMENT (PAIR) | 8 |
|
|
||||||||||
| FTH-1 | OPTIONAL FORK TRUCK LIFTING HANDLES (PAIR) | 5 |
|
|
||||||||||
| SCC-2 | OPTIONAL SIDE CURBS WITH CASTORS (PAIR) | 6 |
|
|
||||||||||
Provide safe and speedy access from a loading dock

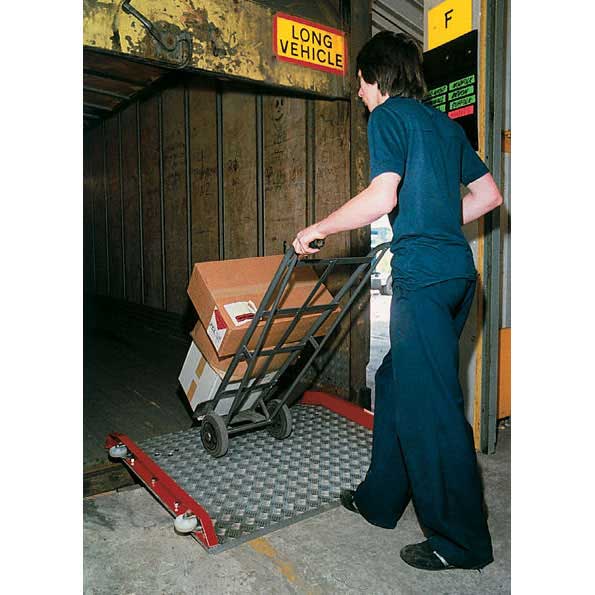

Make loading and unloading from vehicles to docking bays easier with these safe and strong aluminium dock plates. Dock plates provide a simple and low cost solution for unloading goods from trucks and trailers by bridging the gap between vehicle and loading dock. Their use ensures that goods are loaded and unloaded safely and efficiently.
These plates are available in a variety of sizes and are simple to install, fitting any existing loading dock. Ideal for use with pallet trucks, sack trucks and roll cages, they can even be used to mark access ways for pedestrians. They have an anti-slip surface to ensure safety for the user.
The smallest standard size dock plate measures 915mm wide x 1,220mm long, while the largest is 1,525mm wide x 1,525mm long. Whilst the smaller plates are light enough for manual lifting, for health and safety reasons any plate over 25kg will require two people; plates weighing over 50kg will require mechanical assistance. We also offer load steps for safe access on and off vehicles.
