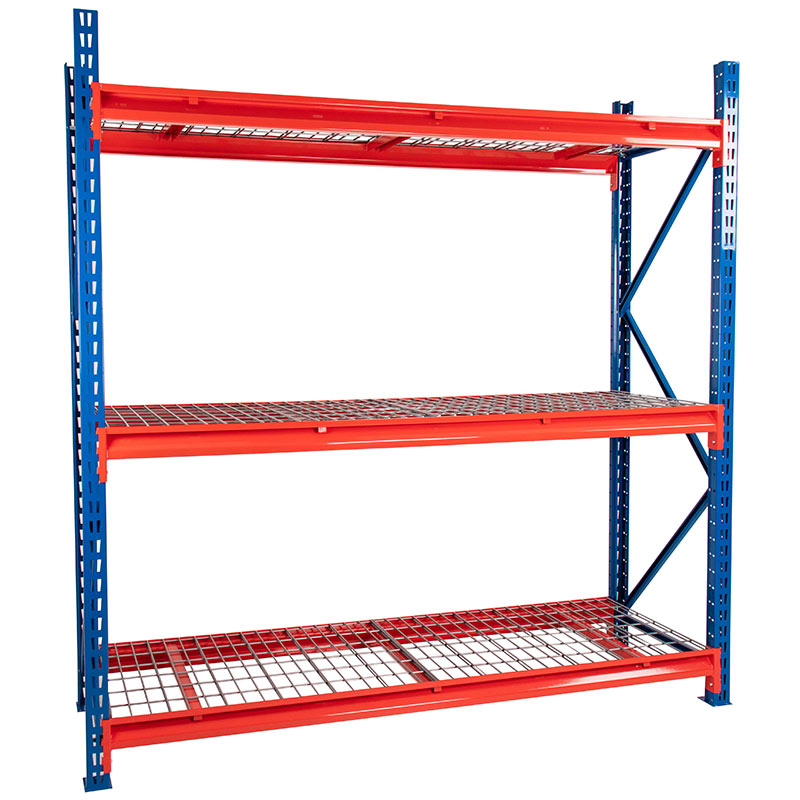

Heavy Duty Longspan Racking Starter Bays with 3 Shelves
Buy Now- Starter kit contains, 2 upright frames (1 in extension bays) 3 pairs of beams and 3 wire mesh shelves
- All bays are 1984mm high
- Deck supports are supplied on depths of 610mm and more to match the beam capacity
- Unique "Z" profile beam offers capacities up to 1200kg
- Steel beams are painted orange RAL2002
- Adaptable storage solution, simple to add to, as your storage needs grow
- Longspan racking extension bays available here
- If your racking height to depth ratio is greater than 4:1, the bay should be fixed to the floor or wall
Code | Dimensions H x W x D (mm) |
Shelf Load (kg) |
Price ex. VAT |
|||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TNBSWD/201804/3/BO | 1984 x 1839 x 471 | 700 |
|
|
||||||||||
TNBSWD/202104/3/BO | 1984 x 2144 x 471 | 700 |
|
|
||||||||||
TNBSWD/202404/3/BO | 1984 x 2449 x 471 | 600 |
|
|
||||||||||
TNBSWD/201806/3/BO | 1984 x 1839 x 624 | 700 |
|
|
||||||||||
TNBSWD/202106/3/BO | 1984 x 2144 x 624 | 700 |
|
|
||||||||||
TNBSWD/202406/3/BO | 1984 x 2449 x 624 | 600 |
|
|
||||||||||
TNBSWD/201807/3/BO | 1984 x 1839 x 776 | 650 |
|
|
||||||||||
TNBSWD/202107/3/BO | 1984 x 2144 x 776 | 650 |
|
|
||||||||||
TNBSWD/202407/3/BO | 1984 x 2449 x 776 | 600 |
|
|
||||||||||
TNBSWD/201809/3/BO | 1984 x 1839 x 928 | 600 |
|
|
||||||||||
TNBSWD/202109/3/BO | 1984 x 2144 x 928 | 600 |
|
|
||||||||||
TNBSWD/202409/3/BO | 1984 x 2449 x 928 | 600 |
|
|
Get your warehouse, workshop or storeroom under control with heavy-duty longspan racking starter bays
Featuring everything you need to get super organised, our starter kits contain; two upright frames (one in the extension bays option) three pairs of beams and three mesh decks. Each racking unit is 1984mm high. The deck supports are supplied in depths of 610mm and more to match the beam capacity. The unique "Z" profile beam offers a capacity of up to 1200kg.
Each steel frames is painted in blue RAL5010 and the steel beams are painted orange RAL2002. This could be the ideal solution to your racking conundrum, offering a truly adaptable storage solution which is simple to add to as your business needs grow. Please do bear in mind that if your shelving height to depth ratio is greater than 4:1, the bay should be fixed to the floor or wall. Labels and weight restriction notices for racking are available separately.
