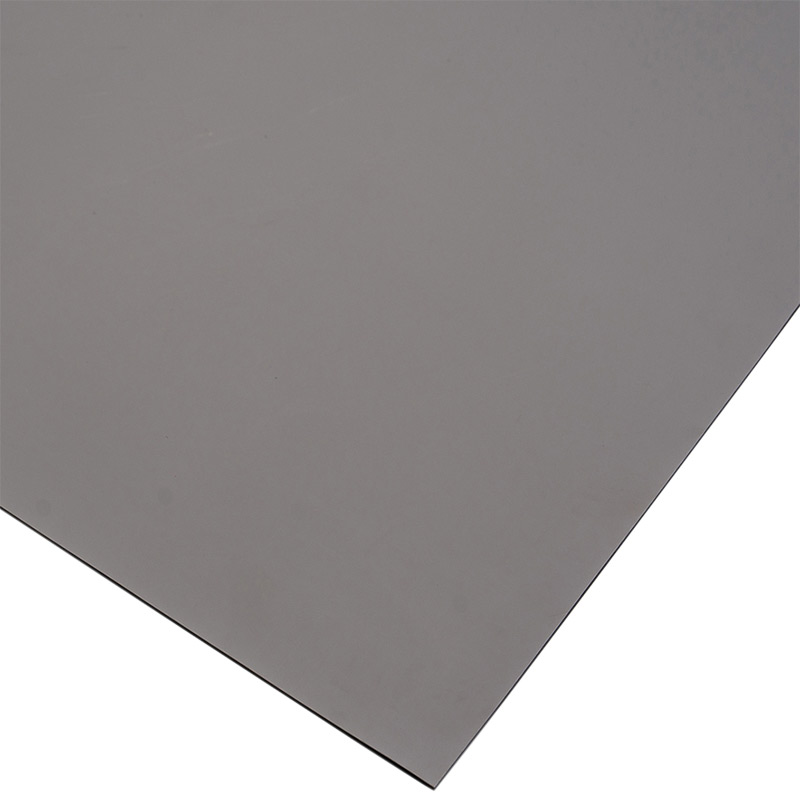

Nitrile Rubber ESD Worktop Matting
Buy Now- Made from 2 layers of Nitrile Rubber, with smooth, abrasion resistant surface which is easy to wipe clean with water
- Protects components from damaging static shock by bringing ESD protective materials and personnel to the same electrical potential, suitable for indoor use only
- Volume resistance: 10^(5) - 10^(8)
- Choice of colours, can be used to easily identify different stages of production and designated work areas
- Range includes mats, rolls and cut lengths
- Thickness 2mm
- ESD matting accessories available separately
- Cut lengths are non returnable
- Call 0808 258 2098 to request your FREE sample
| Code | Type | Colour | Dimensions W x L (m) |
Weight (kg) |
Price ex. VAT |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| EW2448BU-2LS |
 | Mat | Blue | 0.6 x 1.2 | 1.8 |
|
|
|||||||||
| EW2448GY-2LS |
 | Mat | Grey | 0.6 x 1.2 | 1.8 |
|
|
|||||||||
| EW4833BU-2LS |
 | Roll | Blue | 1.2 x 10 | 30 |
|
|
|||||||||
| EW4833GY-2LS |
 | Roll | Grey | 1.2 x 10 | 30 |
|
|
|||||||||
| EW48BU-2LS |
 | Cut length per metre | Blue | 1.2 wide | 3 |
|
|
|||||||||
| EW48GY-2LS |
 | Cut Length per metre | Grey | 1.2 wide | 3 |
|
|

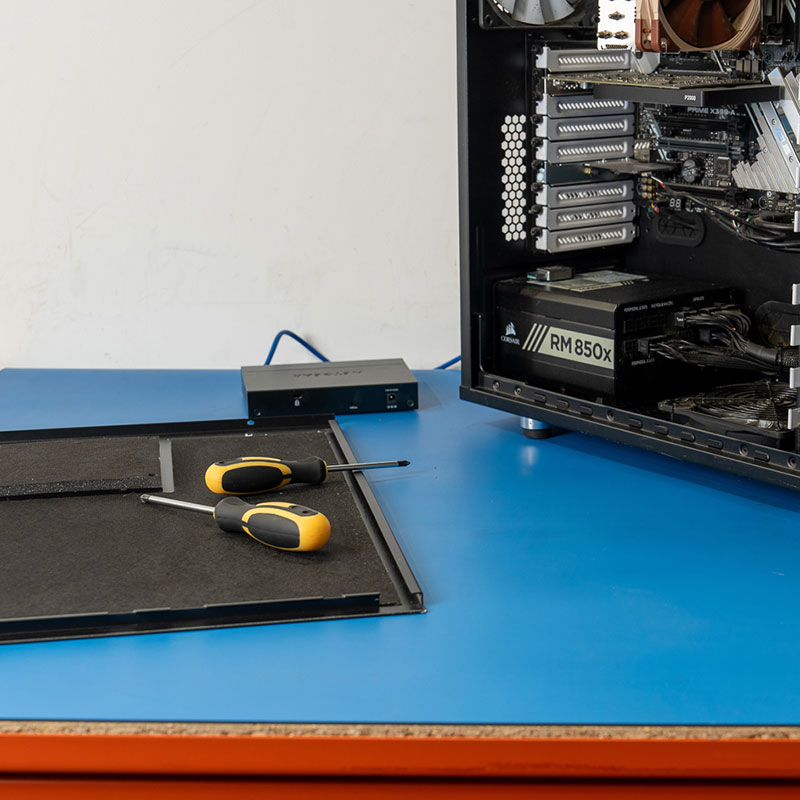

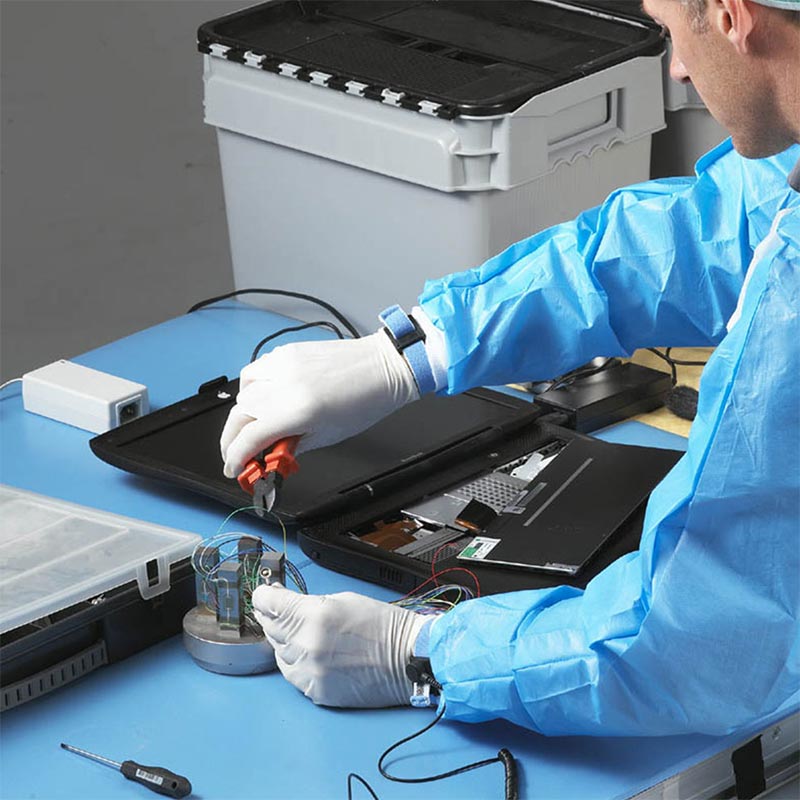

Nitrile rubber worktop mat available in rolls of 10 metres, mats of 60 x 120cm or cut lengths per metre. Nitrile rubber ESD Worktop Matting from ESD Direct protects components from damaging static shock by bringing ESD protective materials and personnel to the same electrical potential. It is designed for use in electronics and micro electronics manufacture and assembly, laboratories, automotive, computer and mobile phone repair shops and hospitals. The smooth surface is easy to wipe clean with water and is also abrasion resistant, available in blue or grey, the choice of colours can help finding components and tools on the bench much easier.

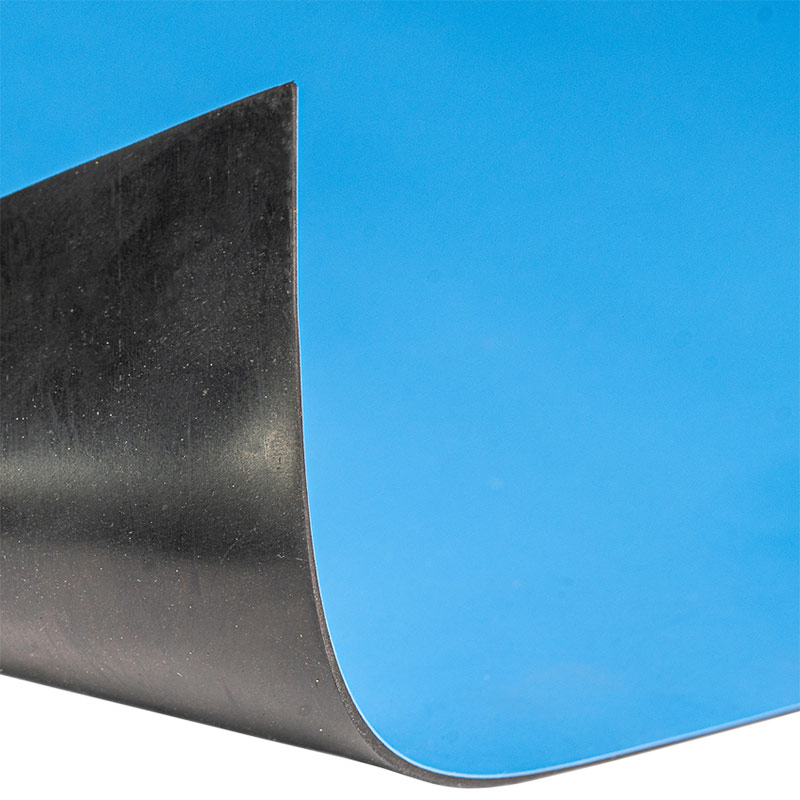

- Static dissipative top surface: 10^(6) - 10^(9)
- Black conductive bottom layer: 10^(3) - 10^(5)
- Volume resistance: 10^(5) - 10^(8)
- Wear rate: 0.02g/cm^(2) Electrostatic dissipation time: <0.1s
- Tensile strength: 4-6 Mpa Elongation at break: 250%
- Tear strength: (Right angle type) 20.6KN/m
- Resilience: Samples by six-layer rubber sheet laminated. 0.14 Impact brittleness temperature: (no incision – 250oC without destruction)
- Set compression: 700oC x 22h: 25% MAX
- Scratch resistance: No clear scratch
- Heat resistance: Resists solder splash and hot paste, rubber doesn’t melt if in contact with hot metal parts and soldering debris. Up to 120OC
- Charge decay: <0.1 sec per FTMS 101C, M4046
- Charge generation: <100 volts per ANSI/ ESD STM4.2
