2 Door Lithium-Ion Battery Cabinets
Delivery Charges
-
Your shopping cart is currently empty.
Made to order
2 Door Lithium-Ion Battery Cabinets
Buy Now- Manufactured from twin walled 1-1.5mm thick cold pressed steel
- Insulated with high-density fibre (ceramic fibre-free) rated to 800°c
- Anti-acid epoxy powder paint providing day to day protection against corrosion and accidental collisions
- Internal melamine laminate panels highly resistant to vapours
- Internal dimensions 1540mm high, 1095mm wide, 446mm deep
- External dimensions 2050mm high, 1200mm wide, 600mm deep
- Labelled with compliant signage identifying contents and potential hazard
- Once temperature reaches 47°C doors close automatically (hydraulic closing system) to contain fire, 3cm thermo-expanding seal (DIN 4102)
- Once temperature reaches 70°C air inlet and outlet pipe valves close automatically
- Features anti-spark hinges to help prevent accidental ignition
- Earthing terminal to prevent electrostatic discharge
- Key-operated door lock (2 keys supplied)
- Height adjustable feet to accommodate uneven floor surfaces
- Back wall features 2 small grids for passive ventilation
- Optional control panel with alarm and FirePro automatic fire extinguisher, monitors temperatures and atmospheric conditions as well as controlling suppression valves, LPCD certified to EN 12094-1 and EN54.2 & 4
- Optional charging power sockets enabling lithium-ion batteries to be charged under safe and controlled conditions
- All cabinets certified to 90 minute fire resistance in event of an internal or external fire EN 14470-1 TYPE 90
| Code | Electric Input | Control Panel with Alarm, Sensor & Firepro Suppression |
No. of Charging Sockets |
No. of Perforated Shelves |
Weight (kg) |
Price ex. VAT |
|||
|---|---|---|---|---|---|---|---|---|---|
| CH-L5K |

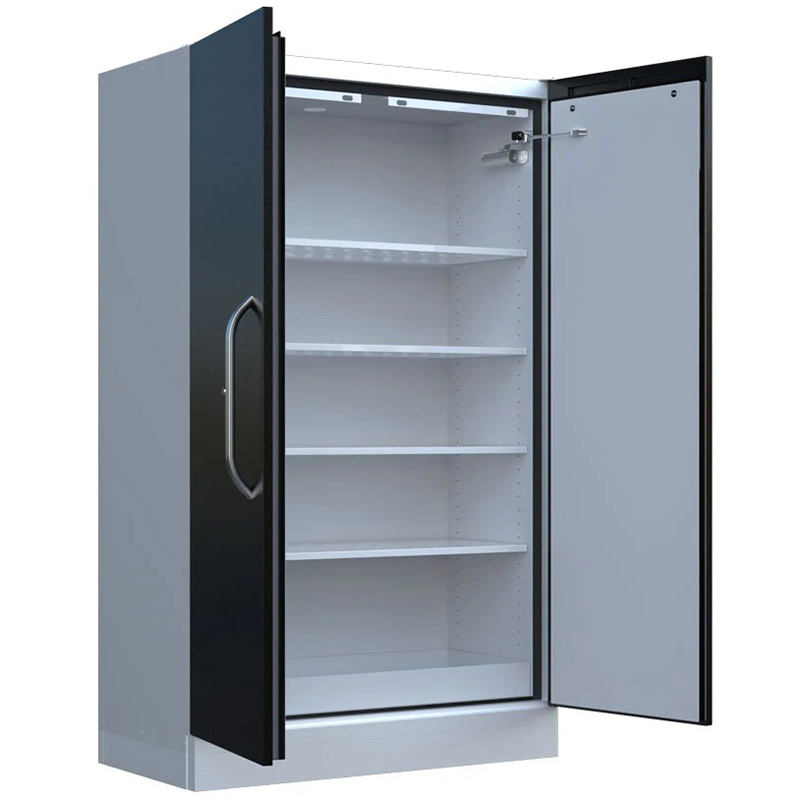

 | Single Phase | No | 4 | No | 350 |
|
|
|
| CH-L5F2PG16K |

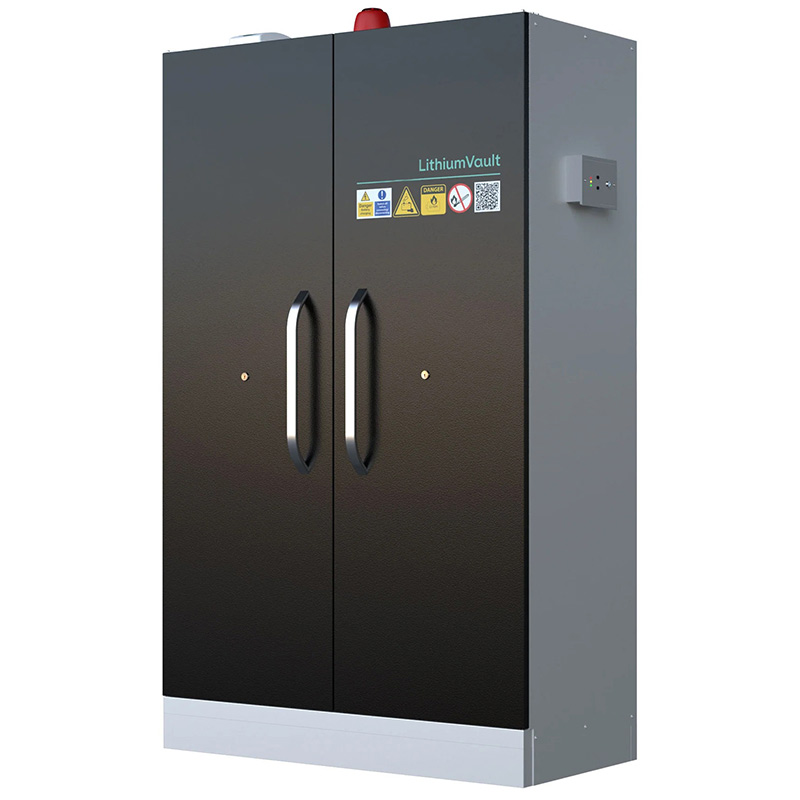

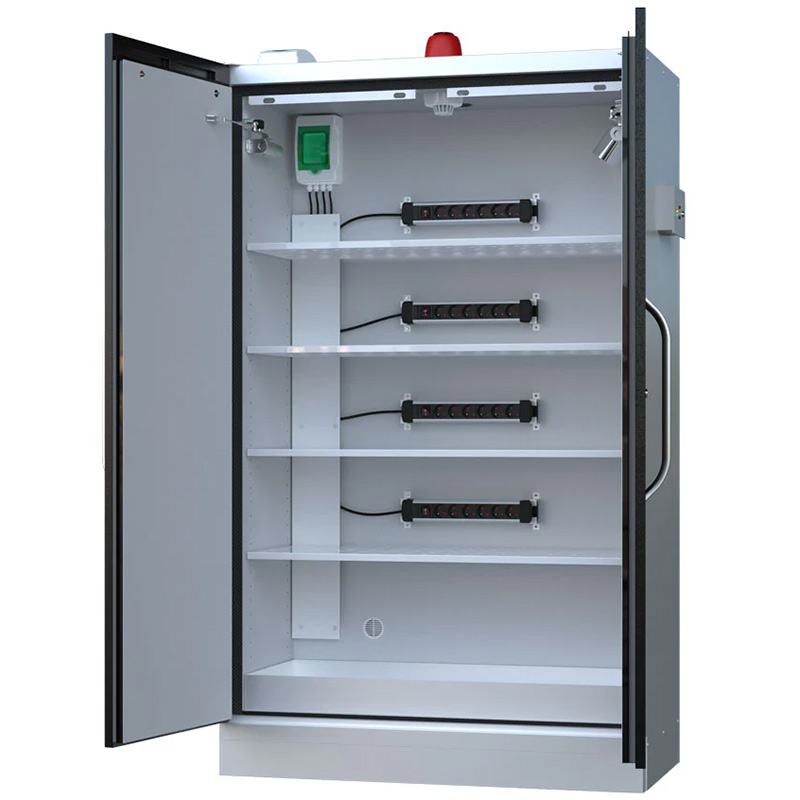

 | Single Phase | Yes | 24 | 4 | 355 |
|
|
|
| CH-L5F2PGK |

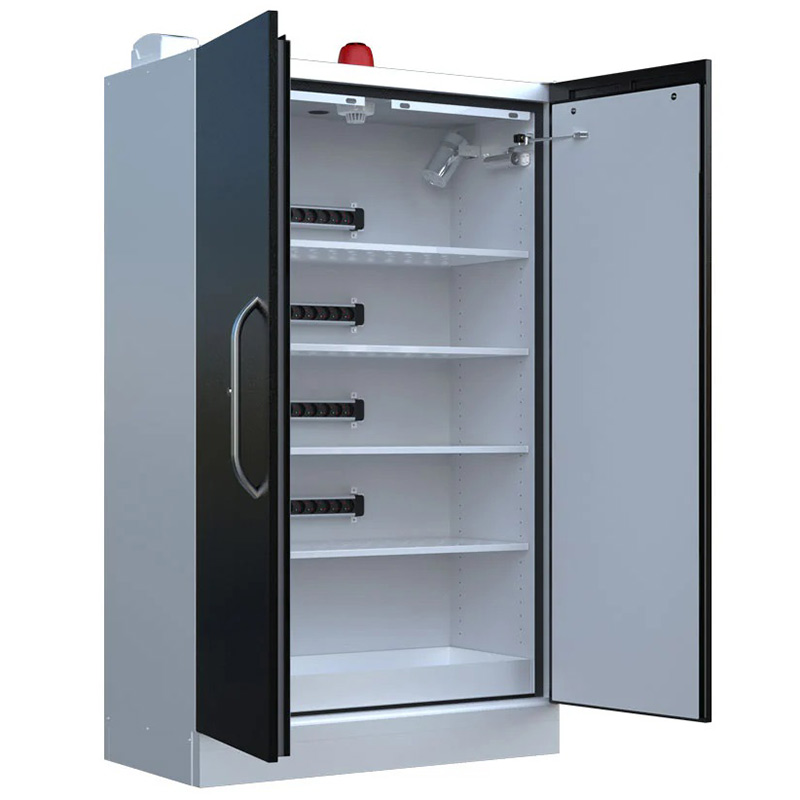

 | Three Phase | Yes | 24 | 4 | 359 |
|
|
Lithium-Ion batteries are used in a wide variety of products from vehicles to watches, in normal working conditions they are safe and stable to use and charge.
However, if charged using the incorrect voltage, overcharged or charged when damaged, lithium-ion batteries may become unstable and in extreme cases catch fire. General advice regarding management of lithium-ion batteries includes trying to prevent physical damage, avoiding exposing batteries to high or low temperatures, not overcharging batteries, safely getting rid of damaged batteries and lithium-ion batteries should be stored and where possible, charged, in controlled environments.
The range of Lithium-Ion battery storage cabinets from ESE Direct provides a safe solution for both storing and charging of lithium-ion batteries, all cabinets are certified to standard EN 14470-1 - 90 minute fire resistance (TYPE 90) at 800°c, with automatic door closing and anti-spark hinges. Options include: charging sockets, control panels, alarms, FirePro suppression and sensors, model CH-L5Q1PGB also features an integrated quarantine water tank into which the shelves will automatically deposit batteries in the event of a fire.
Control Panel Specifications
- LPCB certified to EN 12094-1 and EN54.2 and 4
- Fire detection and automatic extinguishing
- 128 x 64 pixel graphic display
- Fire-extinguishing button on front of unit
- Key-operated switch for selecting extinguishing mode: manual only or manual and automatic
- 3 outputs for sirens
- 3A power supply unit
- Low absorption when idle: only 40mA
- Inputs and outputs for remote control of functions
- Input for Stop extinguishing button and Cancel extinguishing button
- Event storage
- RS-485 for remote panel connection
