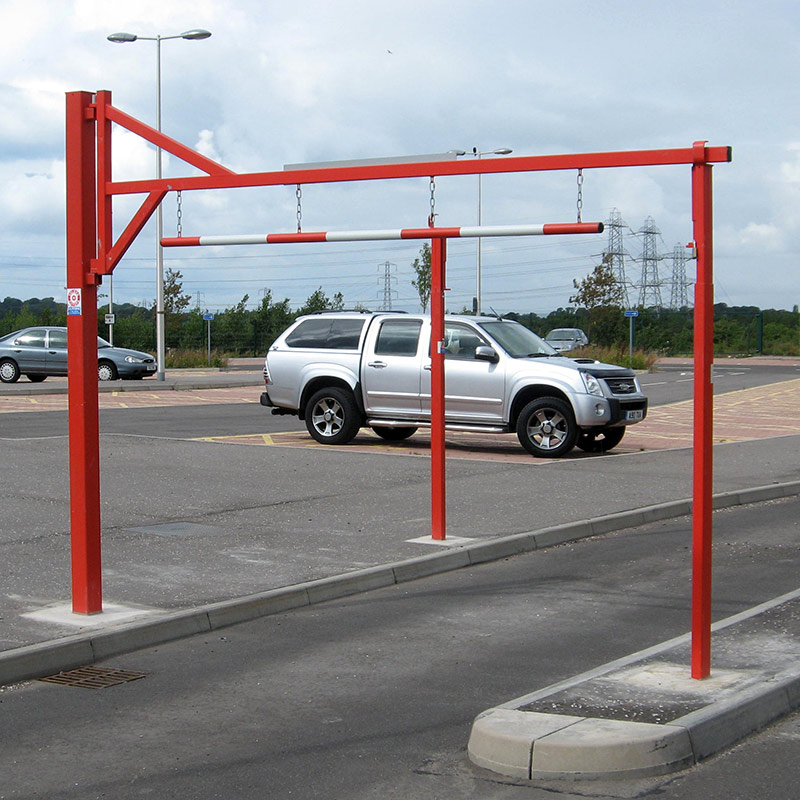

Swing Height Restrictor Barrier Frame
Buy Now- Supplied with hanging post, support post and swing barrier, additional support post available as optional extra
- Made from galvanised mild steel
- Clearance with knocking bar 2.05m
- Standard clearance 2.2m
- Hinged top barrier can swing open to allow taller vehicles through if desired
- Concrete in 600mm below ground
- Powder-coated red paint finish
- Bespoke sizes available on request
- Supplied with 1 x hanging post, 1 x support post and 1 x swing barrier, additional support post, for use when barrier is open, available as optional extra
| Code | Description | Fixings |
Price ex. VAT |
|||
|---|---|---|---|---|---|---|
| 138106634 | 3m Barrier Frame | Bolt down |
|
|
||
| 138106635 | 3m Barrier Frame | Concrete in |
|
|
||
| 138106644 | 4m Barrier Frame | Bolt down |
|
|
||
| 138106645 | 4m Barrier Frame | Concrete in |
|
|
||
| 138106654 | 5m Barrier Frame | Bolt down |
|
|
||
| 138106655 | 5m Barrier Frame | Concrete in |
|
|
||
| 138106664 | 6m Barrier Frame | Bolt down |
|
|
||
| 138106665 | 6m Barrier Frame | Concrete in |
|
|
||
| 138106674 | 7m Barrier Frame | Bolt down |
|
|
||
| 138106675 | 7m Barrier Frame | Concrete In |
|
|
||
| 138500725 | Knock Bar for 3m Frame |
|
|
|||
| 138500730 | Knock Bar for 4m Frame |
|
|
|||
| 138500735 | Knock Bar for 5m Frame |
|
|
|||
| 138500740 | Knock Bar for 6m Frame |
|
|
|||
| 138500745 | Knock Bar for 7m Frame |
|
|
|||
| 138106559 | Additional Support Post | Concrete In |
|
|
The height restrictor has a standard clearance of 2.05 meters. This restriction is designed to limit access to high-sided vehicles and is particularly suitable for commercial and industrial sites. The beam can be opened to allow full access when necessary. Additionally, it can be locked in the open position using a second catch post if needed.
Manufactured in the UK and made from galvanised mild steel, the height restriction barrier is sturdy and durable. The body is powder-coated red as standard.
The height restriction barrier is available in ragged or flanged versions, offering flexibility in installation according to site requirements.
Optional Extras: Knock bars are available and can be fitted as an optional extra. This bar helps to prevent damage from vehicles hitting the height restrictor. The standard clearance is 2.05m when equipped with a knock bar. Without the knock bar, the clearance is 2.2m. Knock bars to suit the barrier can be supplied at an extra cost.
