Project EV Dual Outlet AC Electric Vehicle Charging Station
-
Your shopping cart is currently empty.
1-3 working day delivery

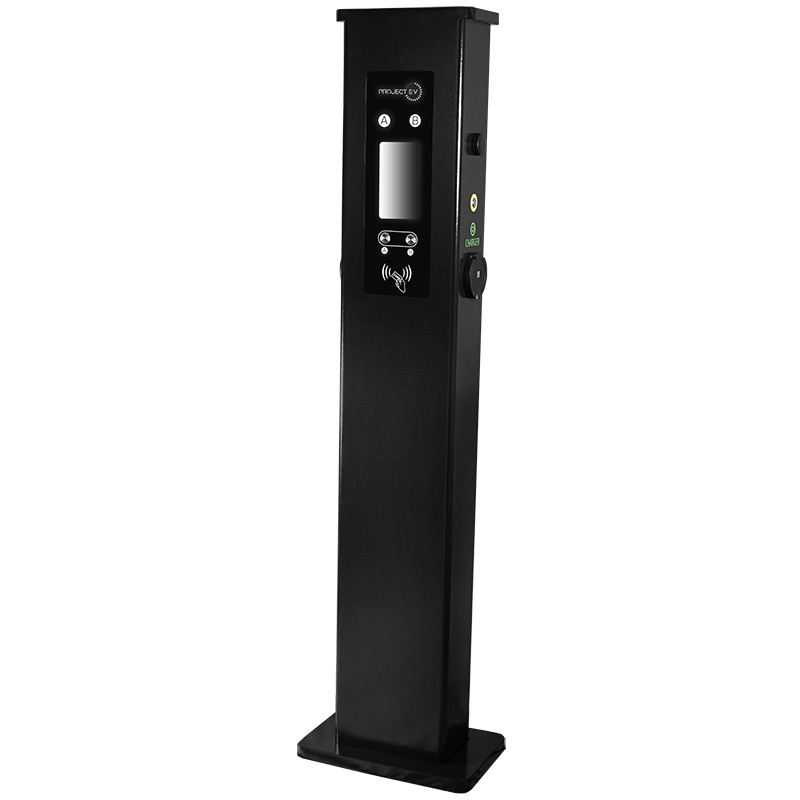

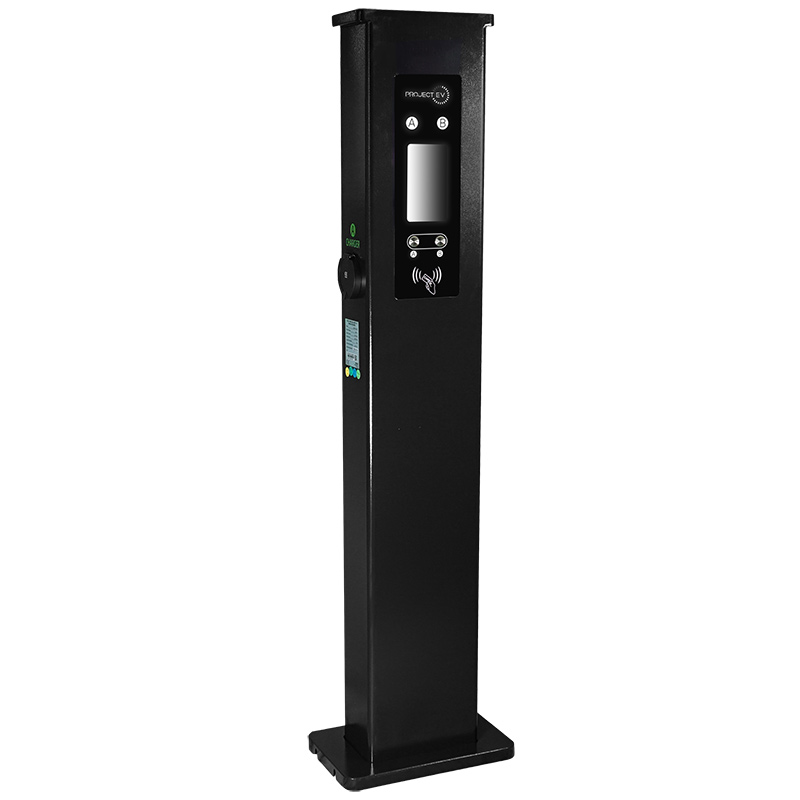

Project EV Dual Outlet AC Electric Vehicle Charging Station
Buy Now- A variety of dual outlet electric vehicle post mounted charging stations
- Available in 7.3kW single phase or 22kW three phase versions
- Cable lock system enhances security
- Equipped with two Type 2 sockets for simultaneous charging of multiple cars
- Integrated RFID control for secure access
- Installation requires no earth spike
- MID metering enables tracking of the charger's energy consumptionn
- Manage your charger remotely with the Project EV app
- IP65 protection provides resistance from dust and water
- SA8000 accredited
- 5 year guarantee
- Charger supplied only - Must be installed by a qualified electrician
- Delivery to mainland GB only - Highlands and Islands unavailable
| Code | Charging Type | Max. Power Output (kW) |
Dimensions H x W x D (mm) |
Weight (kg) |
Price ex. VAT |
||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| EVA-07D-SE-RFID |
 | Single phase | 7.3 | 1635 x 320 x 175 | 30 |
|
|
||||||
| EVA-22D-SE-RFID |
 | Three phase | 22 | 1635 x 320 x 175 | 30 |
|
|
Post mounted EV charging station
This post mounted electric vehicle charging station from ESE Direct is designed to cater to the diverse needs of modern EV owners. Offering unparalleled flexibility and reliability, the chargers are available in both 7.3kW single-phase and 22kW three-phase versions, each of which has two charging outlets, providing simultaneous charging of multiple vehicles with their two Type 2 sockets, perfect for commercial or residential use.
Enhanced security features include a robust cable lock system and integrated RFID control, providing peace of mind and secure access. Installation of these EV battery chargers is hassle free with no need for an earth spike, while MID metering allows you to accurately track energy consumption. Manage your charger effortlessly from anywhere using the Project EV app, allowing you to set a certain time for the charger to turn on and start charging, allowing you to take advantage of lower energy tariffs.
Project EV dual-outlet AV EV charger technical specifications
| Input & Output |
7.3kW Chargers |
22kW Chargers |
| Input Amps |
63a Single Phase |
63a Three Phase |
| Input Voltage |
230V AC |
415V AC |
| Input Frequency |
50HZ |
50HZ |
| Output Voltage |
230V AC |
415V AC |
| Max. Output Current |
32A per Socket |
32A per Socket |
| Charging Interface |
IEC 62196-2, Type 2 |
IEC 62196-2, Type 2 |
| Safety | ||
| IP/IK Protection Rating |
IP65/IK10 | IP65/IK10 |
| Certification | CE, UKCA, SA8000 |
CE, UKCA, SA8000 |
