Single Scissor Lift Tables 1,000kg to 10,000kg capacity
Delivery Charges
-
Your shopping cart is currently empty.
35-40 working day delivery
Single Scissor Lift Tables 1,000kg to 10,000kg capacity
Buy Now- Elevation time from 15 to 55 seconds, depending on the model
- Scissor lift platform sizes from 1300mm x 800mm to 2500mm x 1300mm
- Easy push-button controls with emergency stop in 24v supply to improve electrical safety unlike some other manufacturers
- Single scissor tables have 3 phase 3amp power supply as standard (single phase option available for most models, prices on application) with automatic overload protection housed in IP54 rated fully enclosed casing

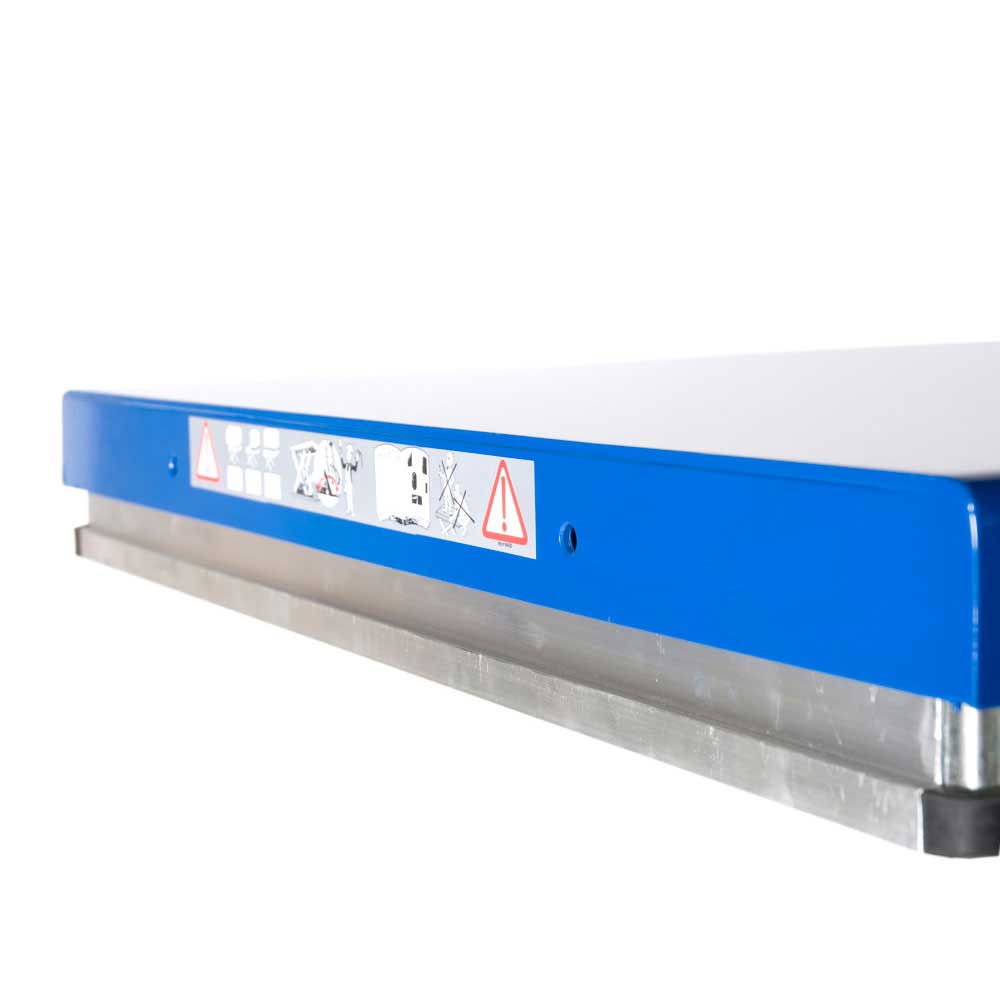

- Safety trip bars under the platform lock the table if its descent is obstructed
- Fail safe automatic pressure relief and hose safety valves lower table slowly in the event of hydraulic failure
- Mechanical stays to lock scissors in place for safe maintenance access
- Manufactured to exceed EN1570/1999 European Standard and CE marked
- TM6000 and TA10000 models have remote power packs, without cover
- Three year guarantee
- Designed and manufactured in accordance with the requirements of the Lift Table Standard, EN 1570-1
| Code | Capacity (kg) |
Folded (mm) |
Stroke (mm) |
Platform Size (mm) |
Rise Time (sec) |
Weight (kg) |
Price ex. VAT |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TL1000B | 1000 | 180 | 820 | 1300 x 800 | 15 | 190 |
|
|
||||||||||
| TL1000XB | 1000 | 180 | 820 | 1300 x 1000 | 15 | 210 |
|
|
||||||||||
| TA1000 | 1000 | 200 | 1300 | 2000 x 800 | 16 | 300 |
|
|
||||||||||
| TM1500 | 1500 | 230 | 1100 | 1700 x 1000 | 17 | 311 |
|
|
||||||||||
| TM1500B | 1500 | 230 | 1100 | 1700 x 1200 | 17 | 337 |
|
|
||||||||||
| TL2000 | 2000 | 200 | 820 | 1300 x 800 | 17 | 237 |
|
|
||||||||||
| TB2000B | 2000 | 220 | 1000 | 1500 x 1200 | 26 | 280 |
|
|
||||||||||
| TS2000 | 2000 | 250 | 1500 | 2200 x 1200 | 27 | 524 |
|
|
||||||||||
| TS2000B | 2000 | 250 | 1500 | 2200 x 1500 | 27 | 598 |
|
|
||||||||||
| TM3000 | 3000 | 250 | 1100 | 1700 x 900 | 27 | 386 |
|
|
||||||||||
| TT3000 | 3000 | 300 | 1700 | 2500 x 1300 | 27 | 705 |
|
|
||||||||||
| TA4000 | 4000 | 350 | 1300 | 2000 x 1200 | 27 | 650 |
|
|
||||||||||
| TM6000 | 6000 | 300 | 1100 | 1700 x 900 | 32 | 550 |
|
|
Static Single Scissor Lifting Platforms are ideal for machine feeding, stacking, packing, palletising, used in a loading bay or even as a height adjustable work platform
Single scissor lift tables or platforms are useful for a range of purposes, such as lifting heavy objects onto and off of loading bays. They can also serve as height-adjustable tables onto which heavy machinery is placed for maintenance work to be carried out. Static Single Scissor Lift Tables are most commonly used for tasks involving machine feeding, palletising, packing and stacking. The platforms are available in several specifications with varying features, such as lifting capacity, platform size and object elevation time. All models, however, are easy and safe to operate and maintain. They also all comply with or exceed international safety standards.
These static single scissor lifting tables are safe, easy to maintain and extremely efficient. They are available with lifting capacities ranging from 1000kg all the way up to a super-strong 10000kg! Let's call him the Incredible Hulk of a scissor lifting table. When it comes to making a decision on which weight capacity to opt for, it's always best to err on the side of caution, if you're struggling to choose between two, it would be wise to plump for the capacity which is larger so you've future-proofed your industrial machinery. Platform sizes also vary with dimensions starting at 800mm x 1200mm for the smallest, right up to 2500 x 1300mm. Obviously the size you select will depending on the shape and size of the items that you intend to lift. If you find that these single scissor tables are not taller enough for your requirements, double vertical scissor lifts with heights of up to 3 metres are an option.
View the Scissor Lift Safety & Service Guide and Declaration of Conformity
View the Scissor lift operation guide
