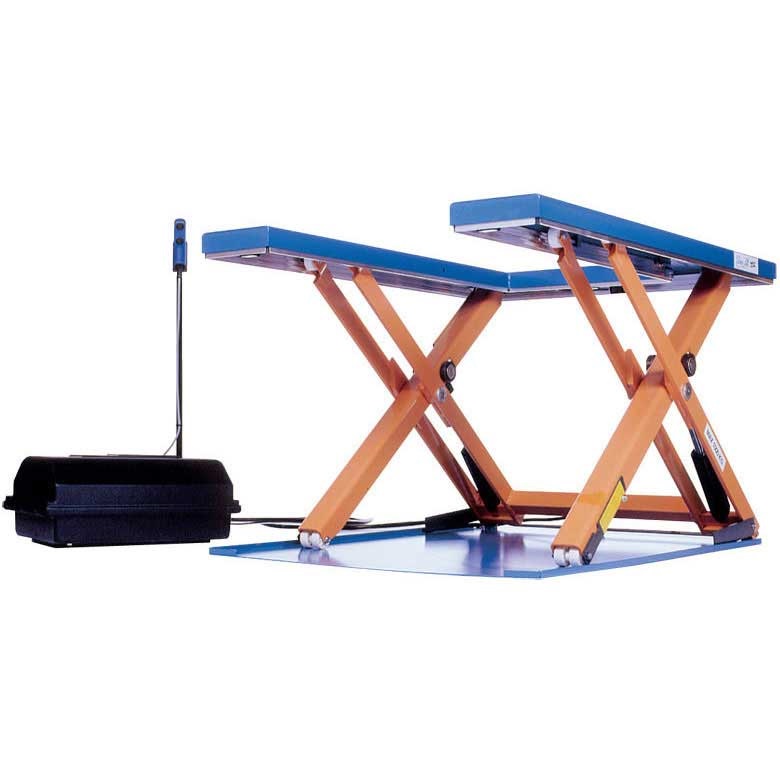

U and E shape Low Profile Scissor Lifts 600kg to 2000kg capacity
Buy Now- U and E shape scissor lift platforms designed to lift 2-way entry pallets from the pallet truck without the need to use a ramp to load onto a table
- 600kg to 2000kg low profile scissor lifts
- 80mm to 100mm closed height (depending on the model)
- Manufactured from powder-coated mild steel
- 13 to 24 second (depending on the model) quick lift time with easy push-button controls and emergency stop using 24v supply to improve electrical safety unlike some other manufacturers
- E and U shape Low Profile Scissor Lifts have 3 phase 3amp power supply as standard (single phase option available most models, pricing on application) with automatic overload protection housed in IP54 rated fully enclosed casing
- Safety trip bars under the table edges lock the lift if its descent is obstructed
- Fail safe automatic pressure relief safety valves to lower scissor table slowly in the event of a hydraulic failure
- Mechanical stays to lock scissors in place for safe maintenance access
- Manufactured to exceed EN1570-1/1999 European Standard and CE marked
- TUB600H must be securely fixed to the ground to maintain stability
- Three year guarantee
Request a call back
U and E shape Low Profile Scissor Lifts 600kg to 2000kg capacity
| Code | Style | Capacity (kg) |
Lowest Height (mm) |
Stroke (mm) |
Platform Ext. L x W (mm) |
Platform Int. L x W (mm) |
Rise Time (sec) |
Weight (kg) |
Price ex. VAT |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TUB600 | E-Shaped | 600 | 80 | 720 | 1450 x 1200 | 900 x 580 | 13 | 250 |
|
|
||||||||||
| TUB600H | E-Shaped | 600 | 80 | 970 | 1450 x 1200 | 900 x 580 | 19 | 250 |
|
|
||||||||||
| TUL1000 | U-Shaped | 1000 | 80 | 820 | 1350 x 1145 | 1060 x 585 | 13 | 240 |
|
|
||||||||||
| TUL2000 | U-Shaped | 2000 | 100 | 820 | 1350 x 1145 | 1145 x 585 | 24 | 350 |
|
|
E shape and U shape low profile scissor lift mechanism allows a very low closed height, eliminating the need for a pit
U and E shaped Low Profile Scissor Lifts raise loads mounted on two-way entry pallets to various heights. The machines meet the strictest international standards and specifications and are safe and simple to operate and maintain. They are robust enough to safely raise loads of up to 600kg or 2000kg, depending on the model. Safety devices are fitted to prevent electrical overload and hydraulic failure. A range of models is available, depending on the precise specification required. If you enjoy the height of these tables but need something a bit wider, there are double-width horizontal scissor lifts available for your workplace.
The scissor lift provides superior results to those of pallet trucks in terms of lift height when using two-way entry pallets.
View the Scissor Lift Safety & Service Guide and Declaration of Conformity
View the Scissor lift operation guide
