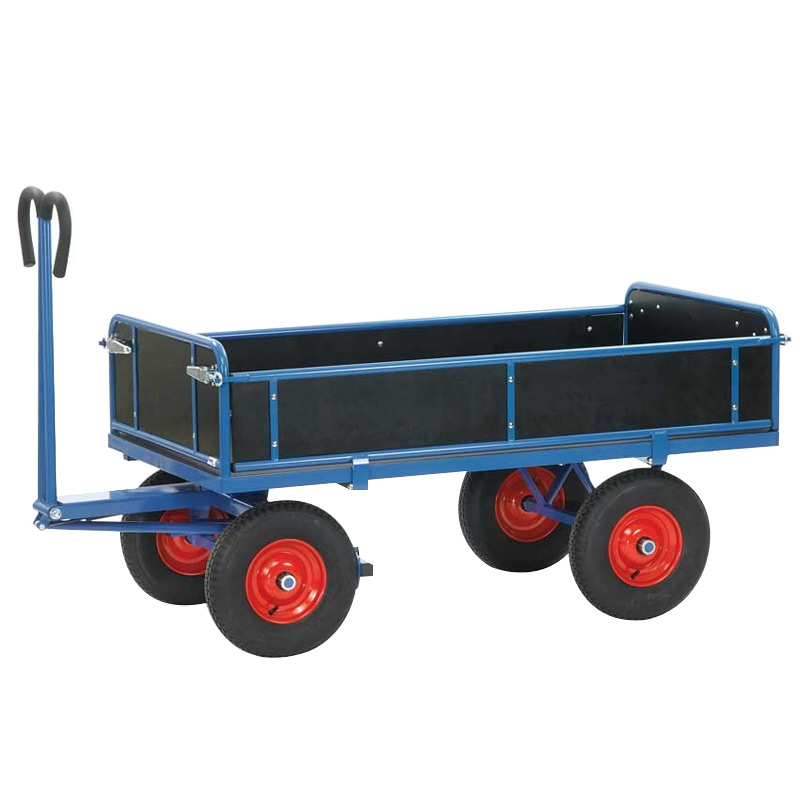

Heavy-Duty 4-Sided Turntable Truck - 10 Year Guarantee
Buy Now- Modular system allows addition of sides and ends as required
- Fully welded steel construction
- Impact resistant powder coat finish in RAL blue 5007
- Tubular corner sleeves retain side and end panels
- The side panels are 250mm high and the end panels measure 325mm high
- Front panel is fixed and the other three can be tilted
- Anti-slip waterproof plywood platform
- Crown gear steering
- Safety loop handles fitted with soft rubber grips & drop safety device
- Automatic braking occurs whenever shaft sinks or rises, with an anti-slip mechanism
- Cushion rubber or pneumatic tyred wheel options
- Compliant with the safety requirements for platform trucks set by EN1757-3
- The platform base sits at 480mm off the ground
| Code | Platform Size L x W (mm) |
Capacity (kg) |
Tyres | Overall Dimensions (mm) |
Price ex. VAT |
|||
|---|---|---|---|---|---|---|---|---|
| E394205 | 1200 x 800 | 700 | Pneumatic | 1560 x 825 x 1130 |
|
|
||
| E315584 | 1200 x 800 | 1000 | Pneumatic | 1560 x 825 x 1200 |
|
|
||
| E394204 | 1200 x 800 | 700 | Rubber Cushioned | 1560 x 825 x 1125 |
|
|
||
| E315590 | 1200 x 800 | 1000 | Rubber Cushioned | 1560 x 825 x 1190 |
|
|
||
| E315586 | 1600 x 900 | 1000 | Pneumatic | 1960 x 925 x 1200 |
|
|
||
| E315585 | 1600 x 900 | 1000 | Rubber Cushioned | 1960 x 925 x 1190 |
|
|
||
| E315588 | 2000 x 1000 | 1250 | Pneumatic | 2360 x 1025 x 1200 |
|
|
||
| E315587 | 2000 x 1000 | 1250 | Rubber Cushioned | 2360 x 1025 x 1190 |
|
|
Professional quality turntable trucks which comply with Euro Norm 1757-3
Like the heavy duty platform truck, this truck with sides has an anti-slip waterproof plywood platform which is ideal for warehouses and garden centres. The 4 sides on this truck offers more security when moving around a large number of goods stopping them rolling off when going around corners or over uneven and sloping floors. These super-sturdy trucks also feature a safety loop handle with a drop safety device which means whenever the handle it lowered, causing the shaft to either raise or lower, the brakes are automatically deployed.
These strong, solid turntable trucks really are the business when it comes to reliability and durability. With load capacities ranging from 700kg - 1250kg you can trust these trucks to stand the test of time. What's more they come with an impressive 10 year guarantee. There is the option of rubber cushioned tyres or pneumatic air-filled tyres and a range of physical sizes to boot. Pneumatic tyres, otherwise known as pump-up tyres are great for providing a smoother, more cushioned ride, but there is the small risk of getting a puncture if you're unfortunate enough to run over something sharp, especially if your truck is fully loaded. Rubber cushion tyres can't be punctured as they are a solid thing. The only potential downside is that they're not quite as comfortable over uneven terrains, so the decision will most likely be based on the type of items you're planning to transport. For more fragile things, you're probably best off with pneumatic tyres, for chunky solid items, solid rubber tyres would be perfect. It's worth noting that regardless of the size of turntable truck you're tempted to, all of these trucks have a platform height of 480mm.
There is an equally heavy-duty turntable truck without sides which may also tickle your fancy.
