TRAFFIC-LINE Medium Duty Impact Protection Railings

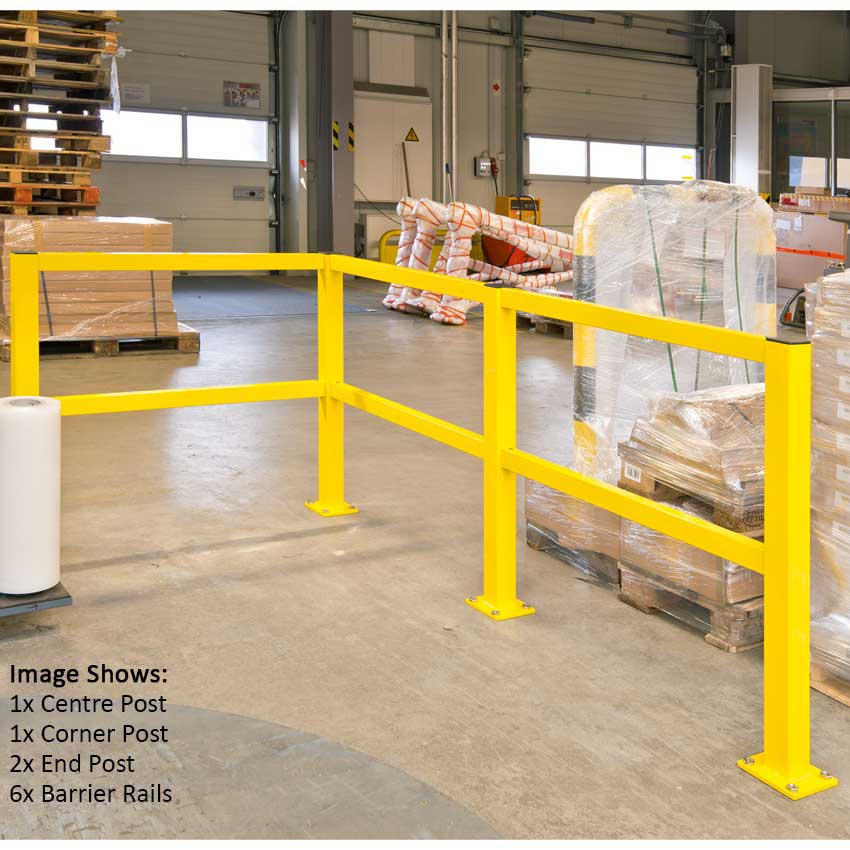

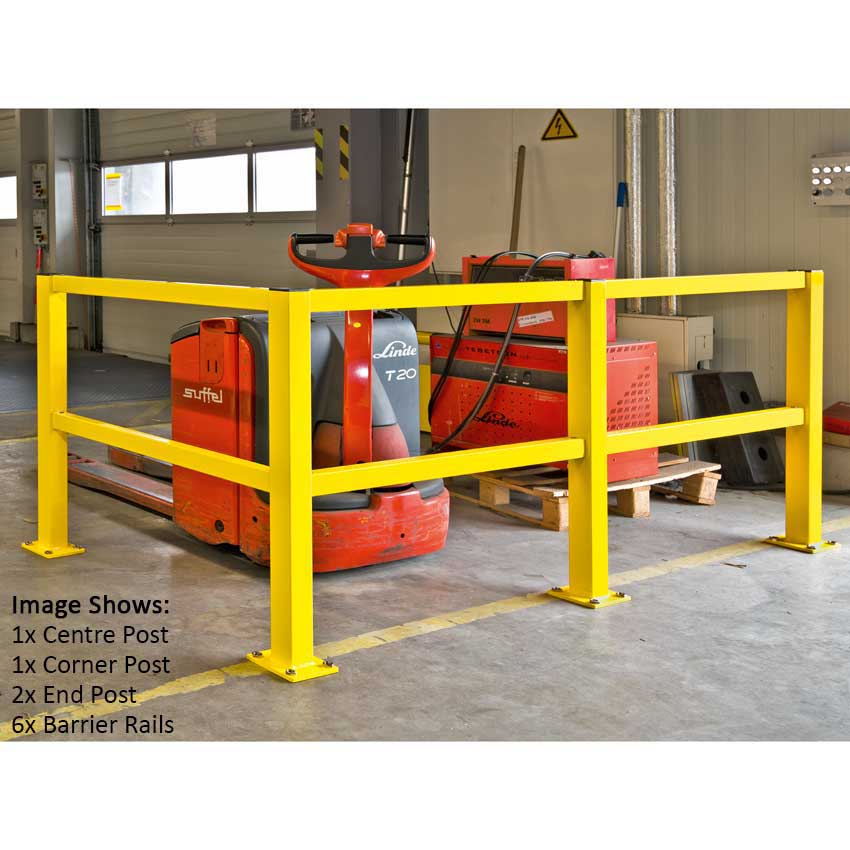

Traffic-Line Medium Duty Railings In Warehouse Environment

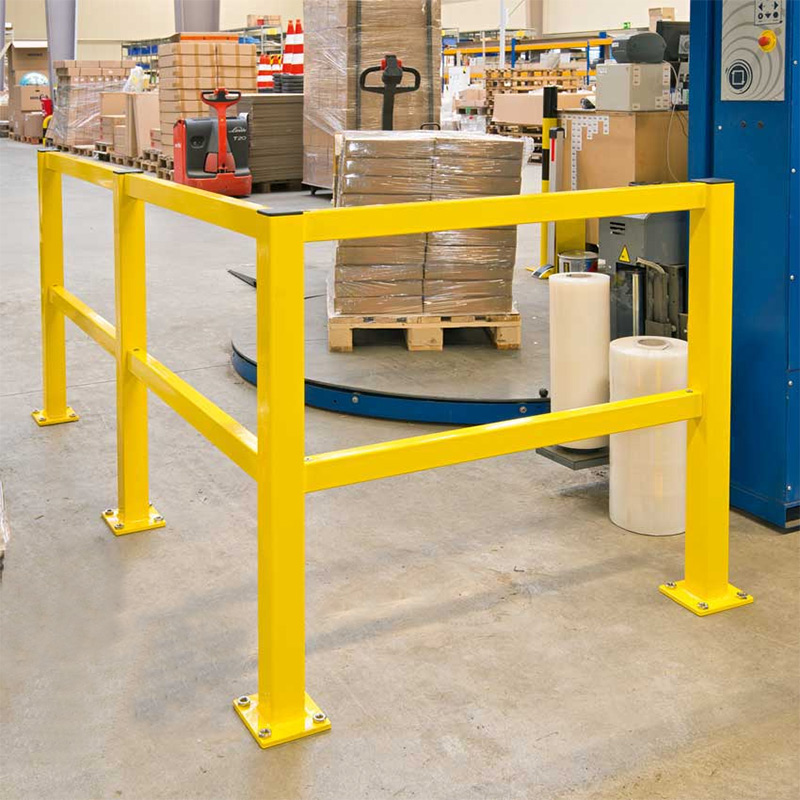

Medium Duty Impact Protection Rails In Warehouse

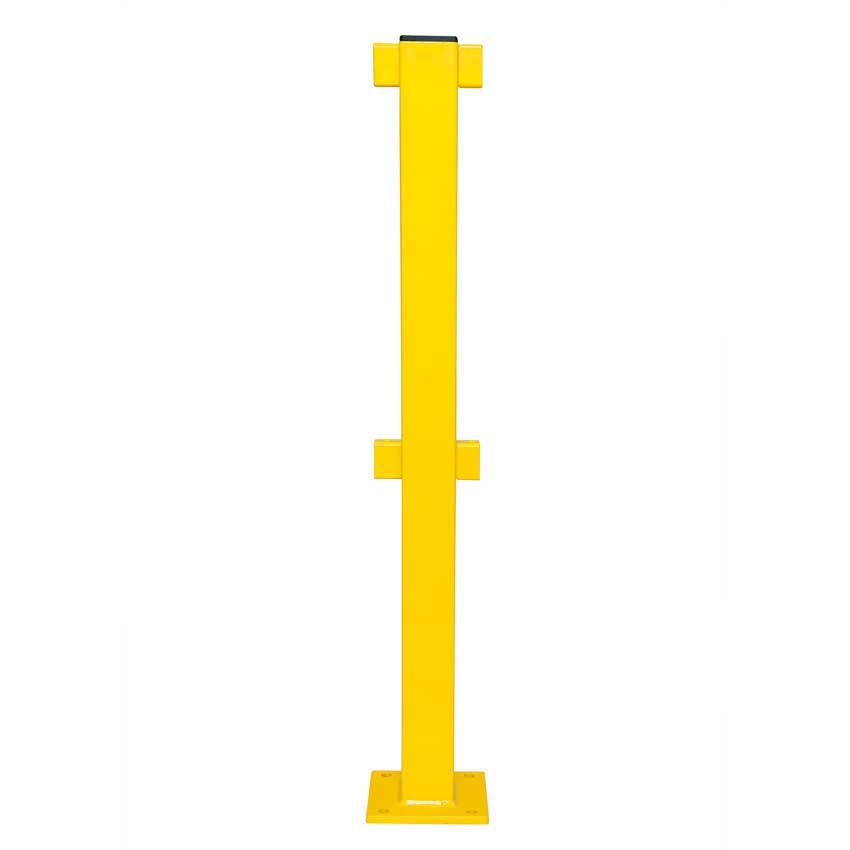

Medium Duty Traffic-Line Centre Post 194.29.943

7-10 working day delivery

supplied
in kit form

year
guarantee

TRAFFIC-LINE Medium Duty Impact Protection Railings

Robust and durable medium -duty railing system designed to separate machinery and pedestrians from vehicular traffic
Powder coated yellow finish for internal use
Hot dip galvanised & powder coated yellow finish for external use
Most suited to applications where a heavy duty barrier system isn't required e.g. warehouses, distribution depots & car parks
Modular design means these barriers can be easily added to and damaged sections can be easily to replaced
Each post is securely fixed to the floor
Counter sunk bolts securely fix rails to posts
All posts are 1000mm H x 70mm W x 70mm D
Post base plates are 10mm H x 160mm W x 140mm D
Barrier rails are 60mm H x 40mm D & available in several lengths
Fixing bolts are available for use with these impact protection railings
Optional manual or self-closing gate available for internal use only
The gate can be opened up to 90° either inwards or outwards and is easy to install

Impact Protection

Code Description Dimensions
(mm) Weight
(kg) Price
ex. VAT

194.21.266

Internal Barrier Rail

1000 Long

1 - 2

£81.00

3 - 5

£78.98

£76.95

194.27.076

Internal Barrier Rail

1200 Long

1 - 2

£86.75

3 - 5

£84.58

£82.41

194.25.352

Internal Barrier Rail

1500 Long

1 - 2

£104.65

3 - 5

£102.03

£99.42

194.25.650

Internal Barrier Rail

2000 Long

1 - 2

£136.35

3 - 5

£132.94

£129.53

194.24.261

Internal End Post

1000 High

1 - 2

£112.95

3 - 5

£110.13

£107.30

194.29.943

Internal Centre Post

1000 High

1 - 2

£131.65

3 - 5

£128.36

£125.07

194.29.694

Internal Corner Post

1000 High

1 - 2

£136.45

3 - 5

£133.04

£129.63

194.20.653

Internal Manual Closing Gate

Gate Size: 835 w x 475mm h
Overall Size 905 w x 520mm h

1 - 2

£278.10

3 - 5

£271.15

£264.20

194.28.624

Internal Self Closing Gate

Gate Size: 835 w x 475mm h
Overall Size 905 w x 520mm h

1 - 2

£527.60

3 - 5

£514.41

£501.22

194.29.126

External Barrier Rail

1000 Long

1 - 2

£119.65

3 - 5

£116.66

£113.67

194.27.265

External Barrier Rail

1200 Long

1 - 2

£128.20

3 - 5

£125.00

£121.79

194.27.828

External Barrier Rail

1500 Long

1 - 2

£157.30

3 - 5

£153.37

£149.44

194.25.033

External End Post

1000 High

1 - 2

£169.25

3 - 5

£165.02

£160.79

194.20.894

External Centre Post

1000 High

1 - 2

£197.10

3 - 5

£192.17

£187.25

194.29.847

External Barrier Rail

2000 Long

1 - 2

£203.05

3 - 5

£197.97

£192.90

194.21.831

External Corner Post

1000 High

1 - 2

£204.25

3 - 5

£199.14

£194.04

Traffic-Line modular impact protection railings, for internal or external situations

The safety of your employees should be in the forefront of any business owners mind. In warehouses, vehicle yards, car parks and manufacturing units its common to have employees working alongside vehicles of all shapes and sizes from forklifts to vans and these vehicles can quite often be transporting pallets and other large items which may obscure the driver's visibility.

These traffic-line impact protection railings are perfect for businesses that don't require a heavy duty railing system. Their robust construction and modular design results in a durable railing system which not only provides protection for employees against vehicle traffic but these railings also help to protect expensive machinery and goods against damage.

The modular design of this impact protection system enables damaged sections to be replaced with ease and when required further posts and rails can be installed with minimal disruption. Two versions of the traffic-line medium duty railing system are available, an internal and an external version. Both systems are the same size, there's only one difference, the external posts and barrier rails are hot dip galvanised before a powder coated yellow finish is applied. For heavy-duty barrier rails suitable for protecting buildings see the triple-ridge steel barrier system.
