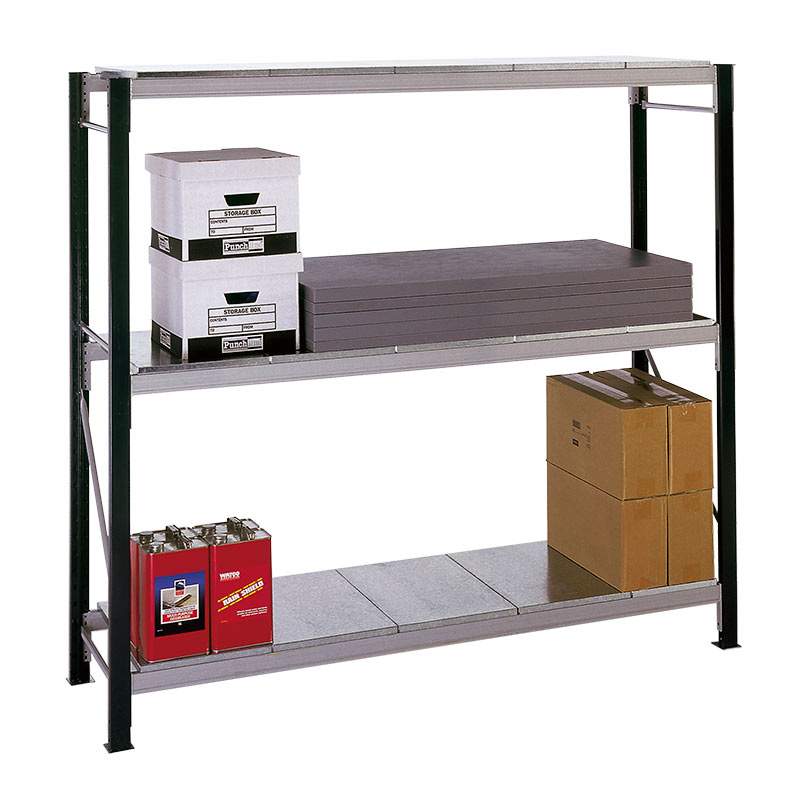

Longspan Shelving Bays 3 Galvanised Steel Shelves
Buy Now- Starter bay contains 2 upright frames (1 in extension bay), 3 pairs of beams, shelf material, locking clips, feet and where applicable wire beam ties
- UDL capacity up to 596kg per shelf
- Locking clips secure beams in position
- Pre Galvanised steel shelf panels, provides rust resistance
- Heights up to 3.6 metres, spans up to 2.7 metres, depths up to 1.2 metres also available
- Shelf loadings quoted must be uniformly distributed across shelf
- Maximum shelf pitch 900 mm
- Height: All units are 1800mm high
- Made in the UK
| Code | Beam Type | Max Shelf Load (kg) |
Bay Type | Dimensions H x W x D (mm) |
Weight (kg) |
Price ex. VAT |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LS18418F | 2LSC | 379 | Starter | 1800 x 1800 x 450 | 42 |
|
|
||||||||||
| LS21418F | 2LBC | 596 | Starter | 1800 x 2100 x 450 | 42 |
|
|
||||||||||
| LS24418F | 2LBC | 469 | Starter | 1800 x 2400 x 450 | 42 |
|
|
||||||||||
| LS18618F | 2LBC | 525 | Starter | 1800 x 1800 x 600 | 42 |
|
|
||||||||||
| LS21618F | 2LBC | 596 | Starter | 1800 x 2100 x 600 | 42 |
|
|
||||||||||
| LS24618F | 2LBC | 477 | Starter | 1800 x 2400 x 600 | 42 |
|
|
||||||||||
| LS18718F | 2LSC | 379 | Starter | 1800 x 1800 x 750 | 42 |
|
|
||||||||||
| LS21718F | 2LBC | 596 | Starter | 1800 x 2100 x 750 | 42 |
|
|
||||||||||
| LS24718F | 2LBC | 469 | Starter | 1800 x 2400 x 750 | 42 |
|
|
||||||||||
| LS18918F | 2LBC | 408 | Starter | 1800 x 1800 x 900 | 42 |
|
|
||||||||||
| LS21918F | 2LBC | 476 | Starter | 1800 x 2100 x 900 | 42 |
|
|
||||||||||
| LS24918F | 2LBC | 469 | Starter | 1800 x 2400 x 900 | 42 |
|
|
||||||||||
| LE18418F | 2LSC | 379 | Extension | 1800 x 1800 x 450 | 36 |
|
|
||||||||||
| LE21418F | 2LBC | 596 | Extension | 1800 x 2100 x 450 | 36 |
|
|
||||||||||
| LE24418F | 2LBC | 469 | Extension | 1800 x 2400 x 450 | 36 |
|
|
||||||||||
| LE18618F | 2LBC | 525 | Extension | 1800 x 1800 x 600 | 36 |
|
|
||||||||||
| LE21618F | 2LBC | 596 | Extension | 1800 x 2100 x 600 | 36 |
|
|
||||||||||
| LE24618F | 2LBC | 477 | Extension | 1800 x 2400 x 600 | 36 |
|
|
||||||||||
| LE18718F | 2LSC | 379 | Extension | 1800 x 1800 x 750 | 36 |
|
|
||||||||||
| LE21718F | 2LBC | 596 | Extension | 1800 x 2100 x 750 | 36 |
|
|
||||||||||
| LE24718F | 2LBC | 469 | Extension | 1800 x 2400 x 750 | 36 |
|
|
||||||||||
| LE18918F | 2LBC | 408 | Extension | 1800 x 1800 x 900 | 36 |
|
|
||||||||||
| LE21918F | 2LBC | 476 | Extension | 1800 x 2100 x 900 | 36 |
|
|
||||||||||
| LE24918F | 2LBC | 469 | Extension | 1800 x 2400 x 900 | 36 |
|
|
Bolt-free shelving bays with strong steel shelves
Maximizing the available storage space is very important for any warehouse or distribution centre, and finding strong, flexible, high quality shelving is important in order to allow the best possible use of the space available for storing goods and materials. These shelving bays are ideal, as they can be extended as needed with a simple add-on extension pack. Shelving can conveniently grow in capacity as the stock levels increase. They are easy to assemble and just as easy to disassemble and move if necessary, which makes for a very flexible shelving solution.
This set of UK made shelving bays offers the perfect solution for flexible shelving in any warehouse or stock room. Our longspan shelving bays are ideal for large-scale storage, their flexibility in size and depth allows organisations to create shelving systems that fit their needs and depending on the size of each bay the shelf capacity varies between 379kg and 596kg. Be aware that the items you place on each shelves should be evenly distributed along each length. So, for instance, it's not advisable to place one single industrial battery weighing 596kg onto one shelf. Two batteries of equal weight (298kg) would be much happier located on a shelf equidistant to one another.
Longspan shelving is also available with FSC certified chipboard shelves, with additional galvanised steel shelves also available.
Your shelving can become the most predominant feature of a workspace, which is why aesthetics will be important too. Happily, these Longspan racking bays are supplied with dark grey uprights, which are complimented by the light grey shelf edging. The understated colour pallet of the shelving means that it will settle comfortably into most environments and won't clash with the rest of your decorations.
