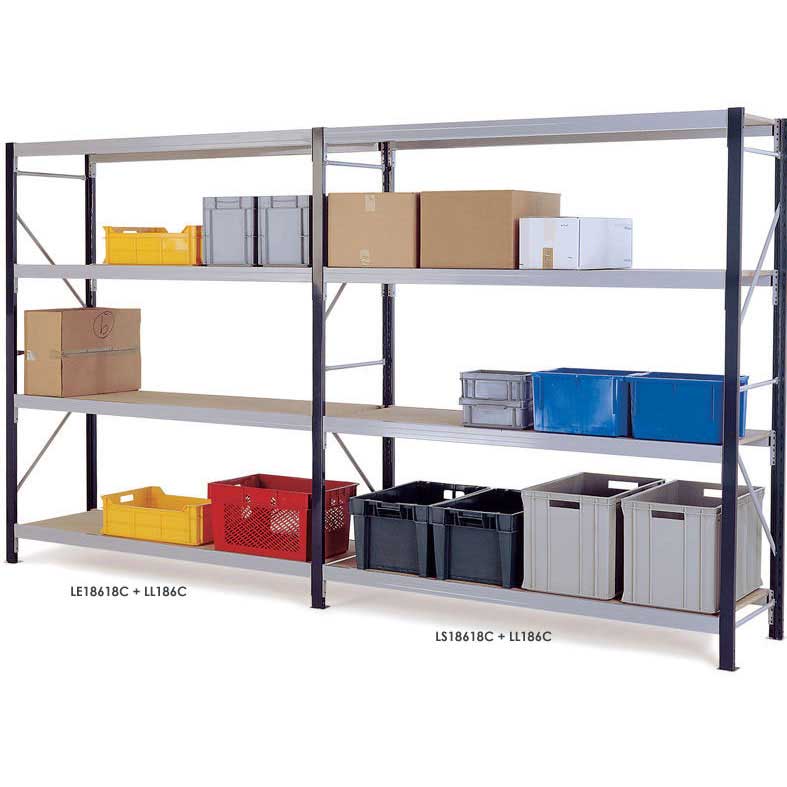

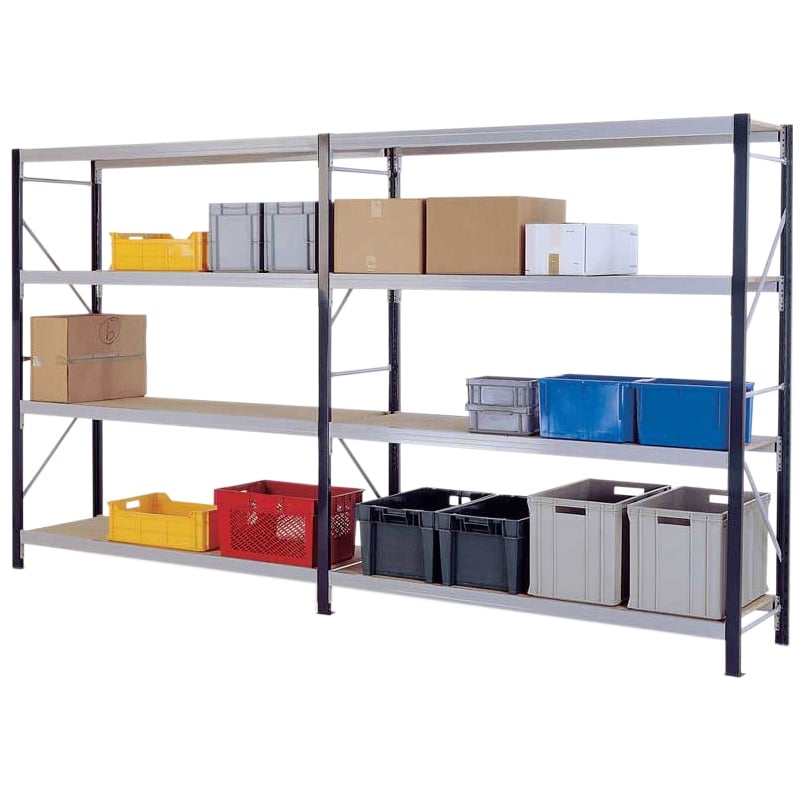

Longspan Shelving Bays 3 Chipboard Shelves
Buy Now- 1800mm high shelving bays with a wide range of widths and depths
- Starter bay contains 2 upright frames (1 in extension bay), 3 pairs of beams, shelf material, locking clips, feet and where applicable wire beam ties
- Locking clips secure beams in position
- 18mm thick chipboard shelves FSC Certified
- Heights up to 3.6 metres, spans up to 2.7 metres, depths up to 1.2 metres are also available
- Shelf loadings quoted must be uniformly distributed across shelf
- Maximum shelf pitch 900mm
- Starter bays weigh 42kg
- Extension bays weigh 36kg
- These shelving bays are also available with galvanised shelves
- Made in the UK
- labels and weight restriction notices for racking are available separately
| Code | Beam Type | Max Shelf Load (kg) |
Bay Type | Dimensions H x W x D (mm) |
Price ex. VAT |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LS18418C | 2LST | 780 | Starter | 1800 x 1800 x 450 |
|
|
||||||||||
| LS21418C | 2LST | 590 | Starter | 1800 x 2100 x 450 |
|
|
||||||||||
| LS24418C | 2LST | 464 | Starter | 1800 x 2400 x 450 |
|
|
||||||||||
| LS18618C | 2LST | 397 | Starter | 1800 x 1800 x 600 |
|
|
||||||||||
| LS21618C | 2LST | 463 | Starter | 1800 x 2100 x 600 |
|
|
||||||||||
| LS24618C | 2LST | 464 | Starter | 1800 x 2400 x 600 |
|
|
||||||||||
| LS18718C | 2LST | 228 | Starter | 1800 x 1800 x 750 |
|
|
||||||||||
| LS21718C | 2LST | 266 | Starter | 1800 x 2100 x 750 |
|
|
||||||||||
| LS24718C | 2LST | 304 | Starter | 1800 x 2400 x 750 |
|
|
||||||||||
| LS18918C | 2LST* | 345 | Starter | 1800 x 1800 x 900 |
|
|
||||||||||
| LS21918C | 2LST* | 403 | Starter | 1800 x 2100 x 900 |
|
|
||||||||||
| LS24918C | 2LST* | 460 | Starter | 1800 x 2400 x 900 |
|
|
||||||||||
| LE18418C | 2LST | 780 | Extension | 1800 x 1800 x 450 |
|
|
||||||||||
| LE21418C | 2LST | 590 | Extension | 1800 x 2100 x 450 |
|
|
||||||||||
| LE24418C | 2LST | 464 | Extension | 1800 x 2400 x 450 |
|
|
||||||||||
| LE18618C | 2LST | 397 | Extension | 1800 x 1800 x 600 |
|
|
||||||||||
| LE21618C | 2LST | 463 | Extension | 1800 x 2100 x 600 |
|
|
||||||||||
| LE24618C | 2LST | 464 | Extension | 1800 x 2400 x 600 |
|
|
||||||||||
| LE18718C | 2LST | 228 | Extension | 1800 x 1800 x 750 |
|
|
||||||||||
| LE21718C | 2LST | 266 | Extension | 1800 x 2100 x 750 |
|
|
||||||||||
| LE24718C | 2LST | 304 | Extension | 1800 x 2400 x 750 |
|
|
||||||||||
| LE18918C | 2LST* | 345 | Extension | 1800 x 1800 x 900 |
|
|
||||||||||
| LE21918C | 2LST* | 403 | Extension | 1800 x 2100 x 900 |
|
|
||||||||||
| LE24918C | 2LST* | 460 | Extension | 1800 x 2400 x 900 |
|
|
Longspan shelving offering bolt-free construction for simple shelving bays with rapid assembly

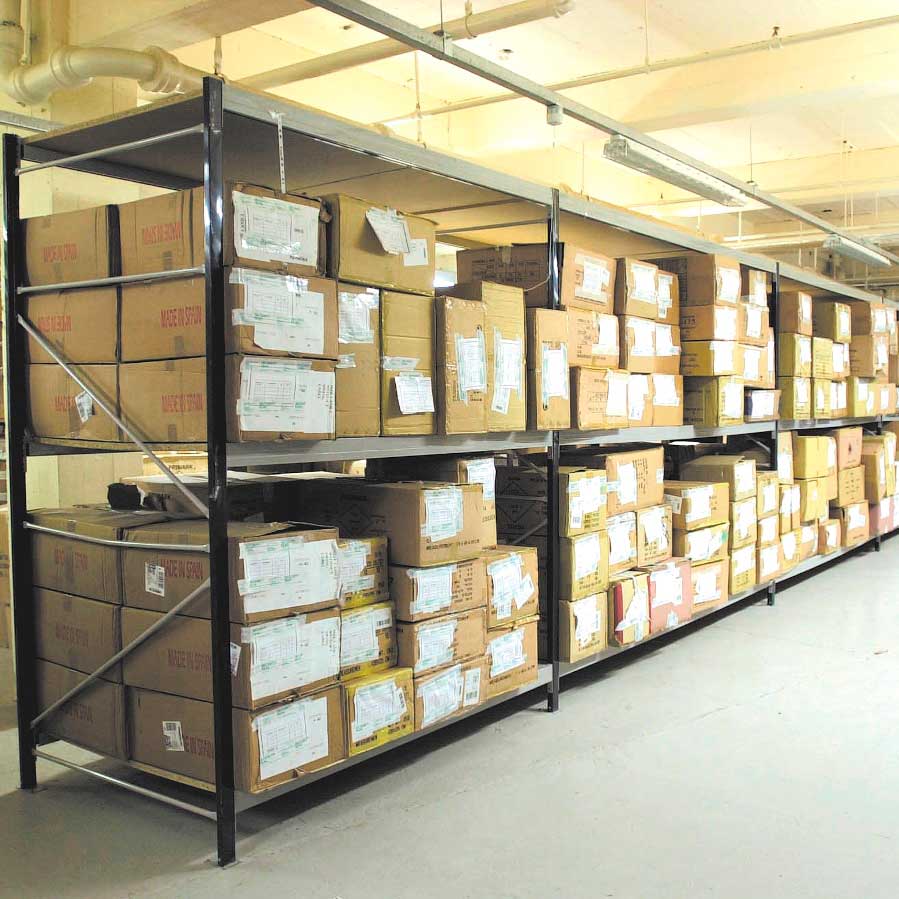

Manufactured in the UK, this shelving bay system is versatile enough for a huge range of today's commercial and industrial hand-loaded storage needs. Whether you are looking to create a new storage facility or simply expand due to a growing business, these shelving bays will fit right in.
Although an industrial strength product, these shelves would be equally at home in your garage. Why not instal a row along a wall and create a home for all those bits and pieces which can be left laying around willy nilly on your garage floor. Keep you welly boots, tools, and hose reels tidy and in turn save that time you'd usually spend locating said items. That means more time for tea and biscuits. Always a winner with us!

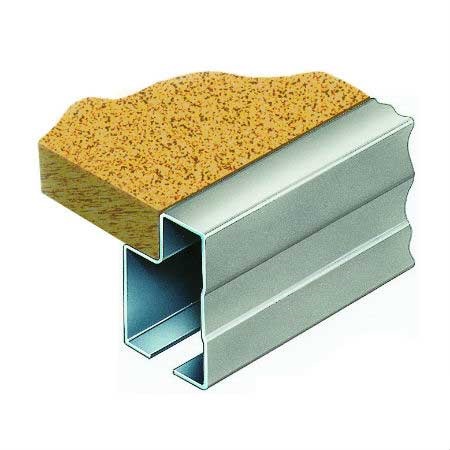

A variety of beams are available, including the economical C-beam, the box-beam which can carry 1.5 tonnes, and aesthetic stacked-beams which guarantee good use of space. To ensure reinforcement for C-beams and stacked beams which are 1800 mm or longer, essential wire ties are stocked so that strength is not compromised.
For an eco-friendly solution, chipboard shelves are FSC (Forest Stewardship Council) certified. In order to withstand the pressure of varying heights of up to 3.6 metres, different easily attached feet are available for optimum stability.
Large-scale storage is further enabled through flexible width and depth. The Longspan Shelving Bays are also able to support from 228 kg to 780 kg in weight. In those environments where an anti-fire option is necessary, sturdy meshed decking is available.
Please note, these bays use 25mm thick chipboard shelves, meaning the shelf sits 7mm proud of the beam.
Extra chipboard shelves for longspan shelving bays are available to order separately
